Discontinuous Open Width Washing Machine
WPF-JXPX
Discontinuous Open Width Washing Machine · Engineered with the QL Double-Nip Spray Washing System

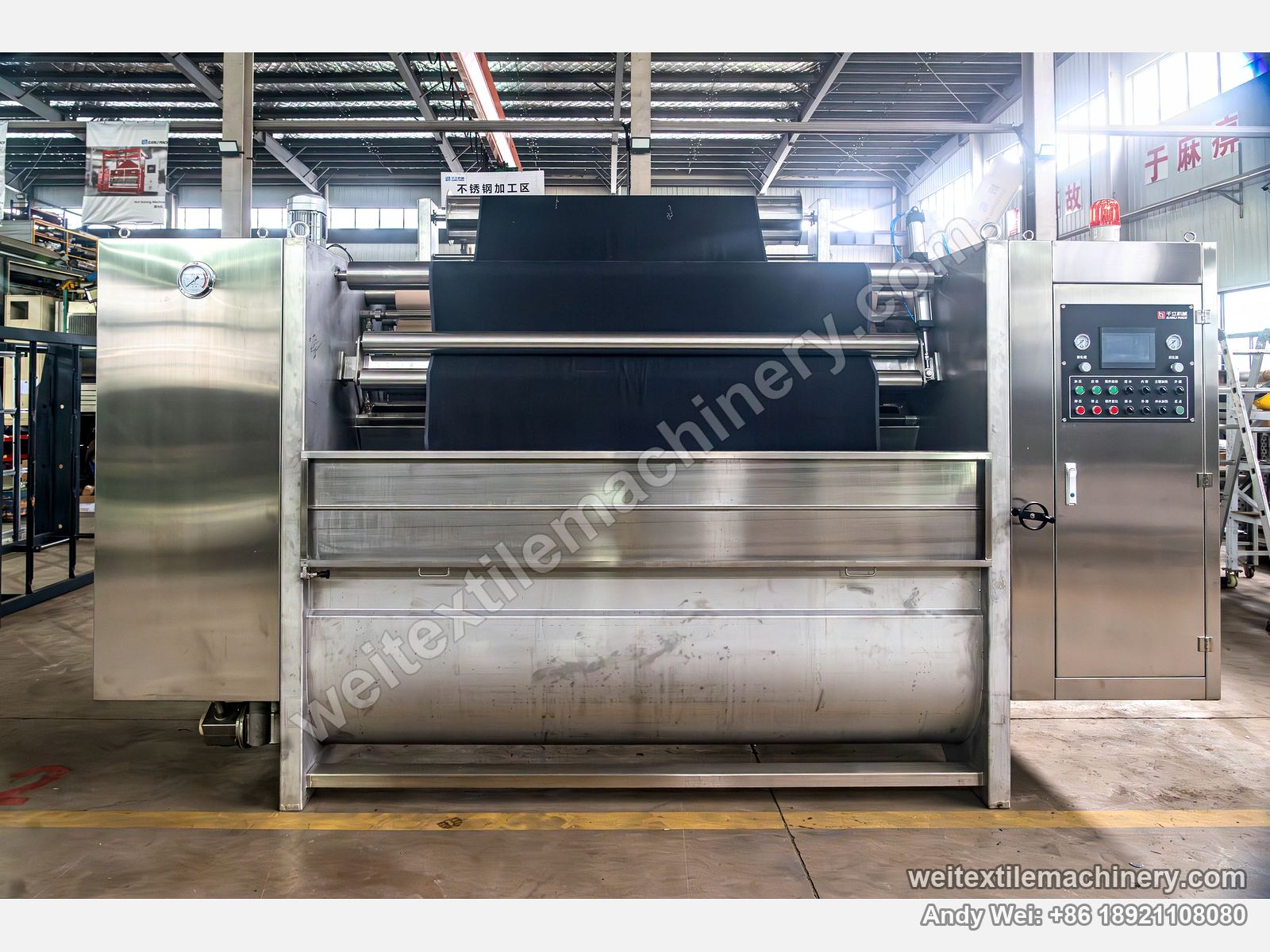

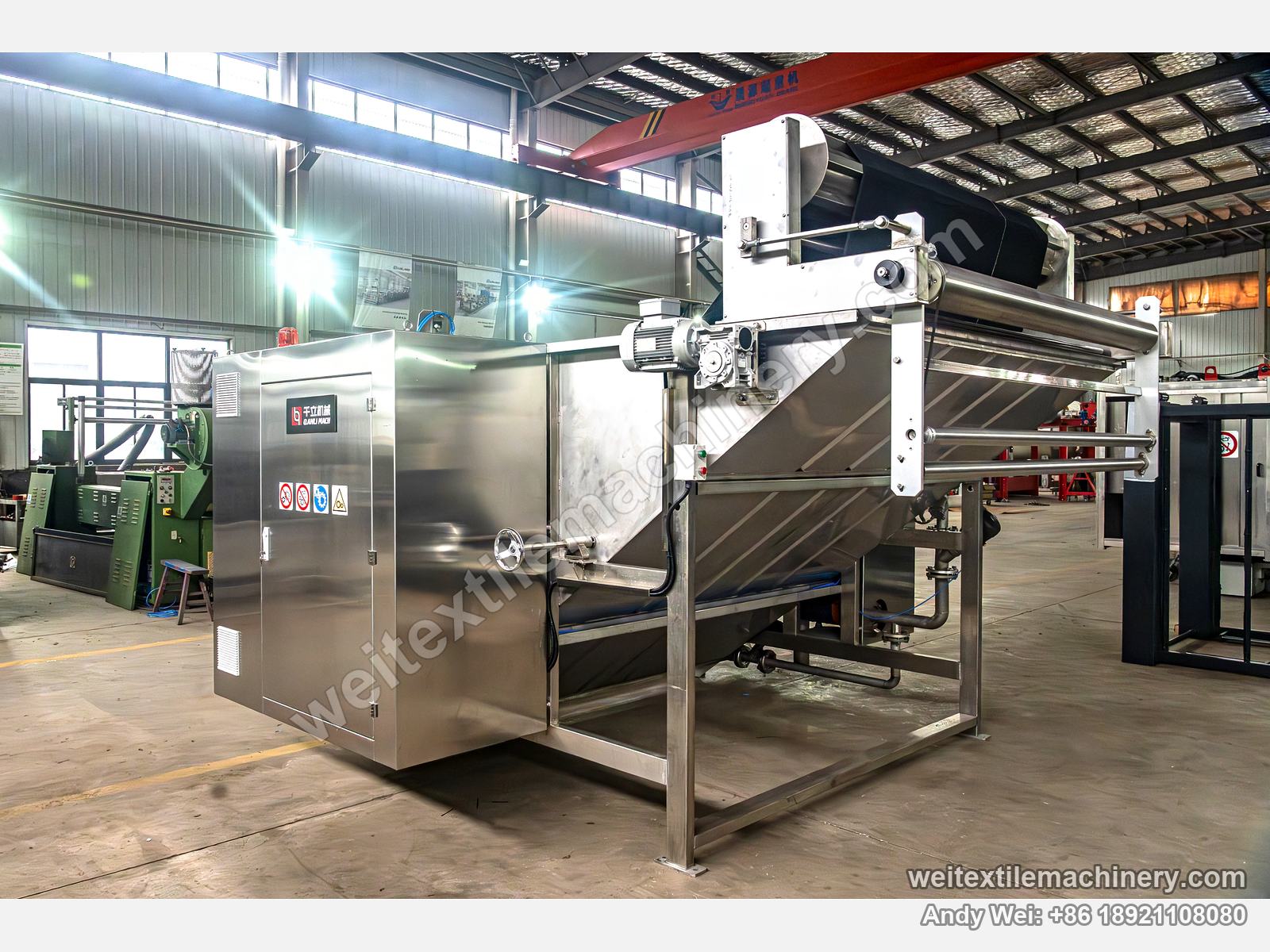

The machine, up close

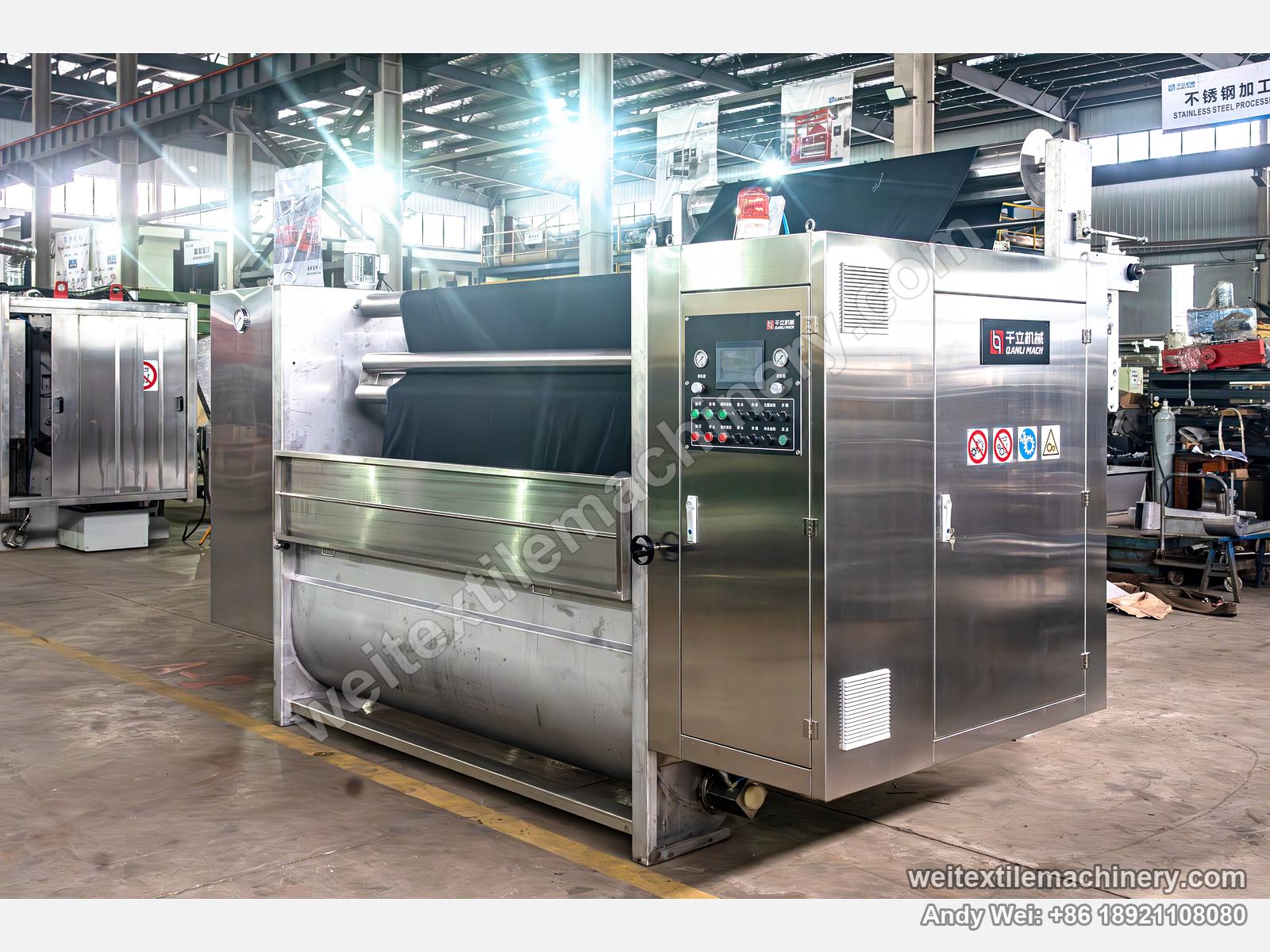

Full view, curved trough
Key advantages
- QL Double-Nip Spray Washing System — two pairs of squeeze rollers in series, with high-pressure sprays on face and back ahead of each pair; the sprays rinse soil off the surface and the two nips press soil-laden liquor out from within the fabric — surface and interior washed clean together
- Endless Loop · Open-Width Circulation — the whole piece is sewn end to end into a loop and runs in open width throughout, never gathered into rope form — none of the creases of rope scouring, even treatment, the weave kept clearly defined
- High-Pressure Side Sprays · Fabric Spread Flat — high-pressure spray pipes at either side of the machine spread the fabric flat with water jets, outwards towards both selvedges — washed fabric comes out free of curled selvedges
- Spreader-Roller Opening · Guide-Roller Centring — the spreader roller opens the fabric out across its width while the guide roller keeps it running centred — flat across the full width into the nips
Fabric results (before / after)
Threading diagrams
QL Double-Nip Spray Washing System
- Face-and-Back High-Pressure Spraying — a spray frame ahead of each pair of squeeze rollers sprays the face and back of the fabric at high pressure, rinsing away surface soil and dust
- Two Squeeze Nips in Series — on every circuit the fabric passes through both pairs of squeeze rollers in turn, each nip pressing out the liquor held within the fabric, laden with dissolved oily soil; roller pressure is adjustable
- Hot-Liquor Circulation — the liquor in the tub is heated by direct steam, a pump circulates it and its temperature is controlled automatically; with the liquor hot, spinning oil and oily soil are more readily emulsified by the detergent and carried away
Product overview
The WPF-JXPX joins the whole piece end to end and keeps it circulating in open width throughout the wash — the fabric is never gathered into rope form, eliminating the creases that conventional rope scouring leaves behind. Even treatment, with the weave left clearly defined.
Washing is carried out by the QL Double-Nip Spray Washing System: ahead of each pair of squeeze rollers, high-pressure sprays play on the face and back of the fabric, rinsing away surface soil and dust; on every circuit the fabric passes through two nips, which press out the liquor held within the fabric, now laden with dissolved oily soil. High-pressure spray pipes at either side of the machine spread the fabric flat and the spreader roller opens it out across the width — washed fabric comes out free of curled selvedges.
Suited to open-width washing of wool and wool blends, and especially well suited to silk, mohair and synthetic-fibre fabrics — greige fabric is cleaned of spinning oil, size and soil; wool fabric, once milled and scutched, is washed free of soap liquor and then passes in open width straight on to crabbing.
Applications
Key specifications
| Working width | 2,000 mm |
|---|---|
| Speed | 0–100 m/min |
| Maximum batch load | 180 kg |
| Heating | Direct steam heating |
| Installed power | 6 kW |
| Overall dimensions (L × W × H) | 4,000 × 3,200 × 2,740 mm |
