Weft Straightener
WPF-ZW
Weft Straightener · Engineered with the QL Pin-Wheel Transverse-Tension Straightening System

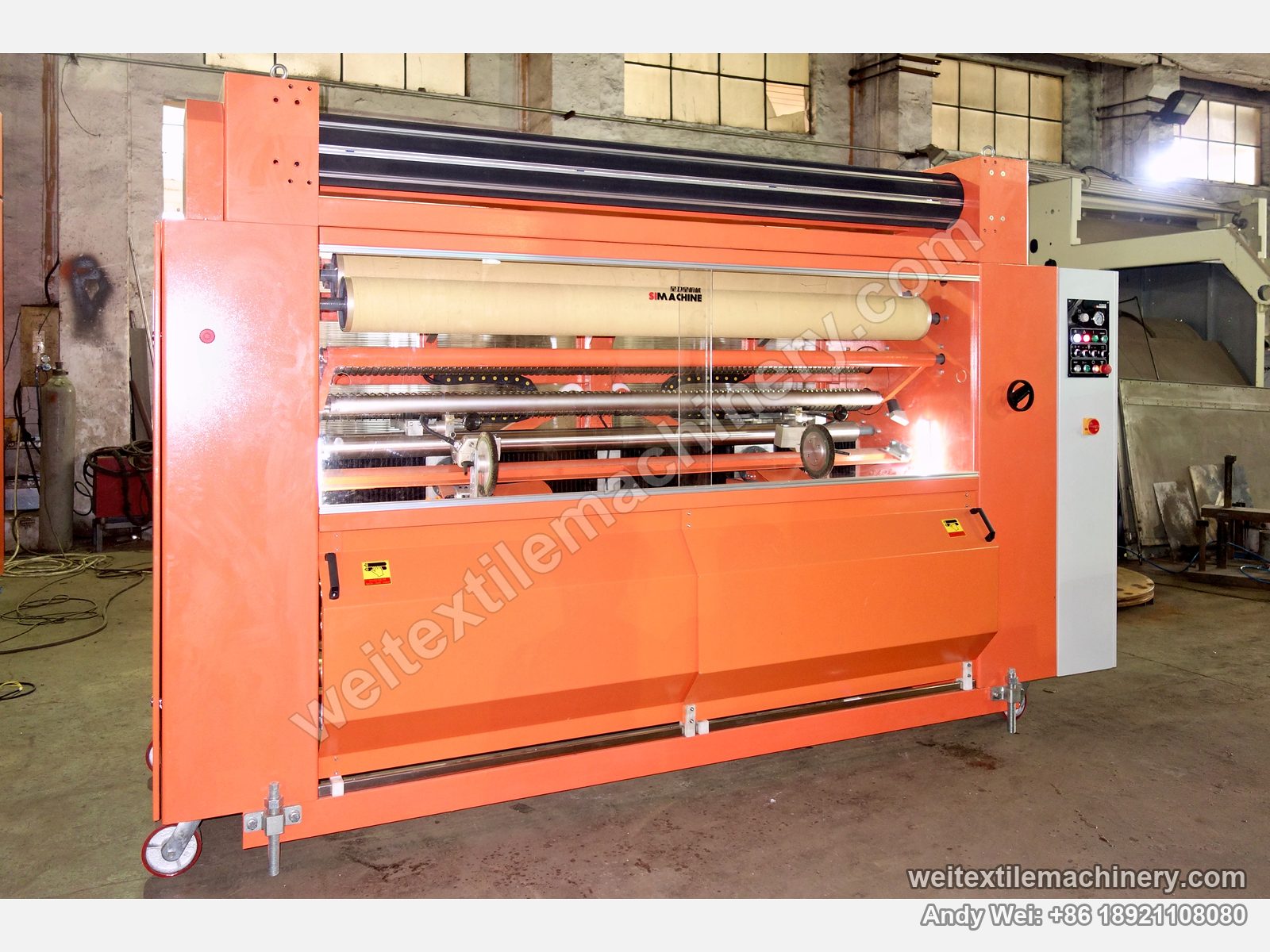

The machine, up close

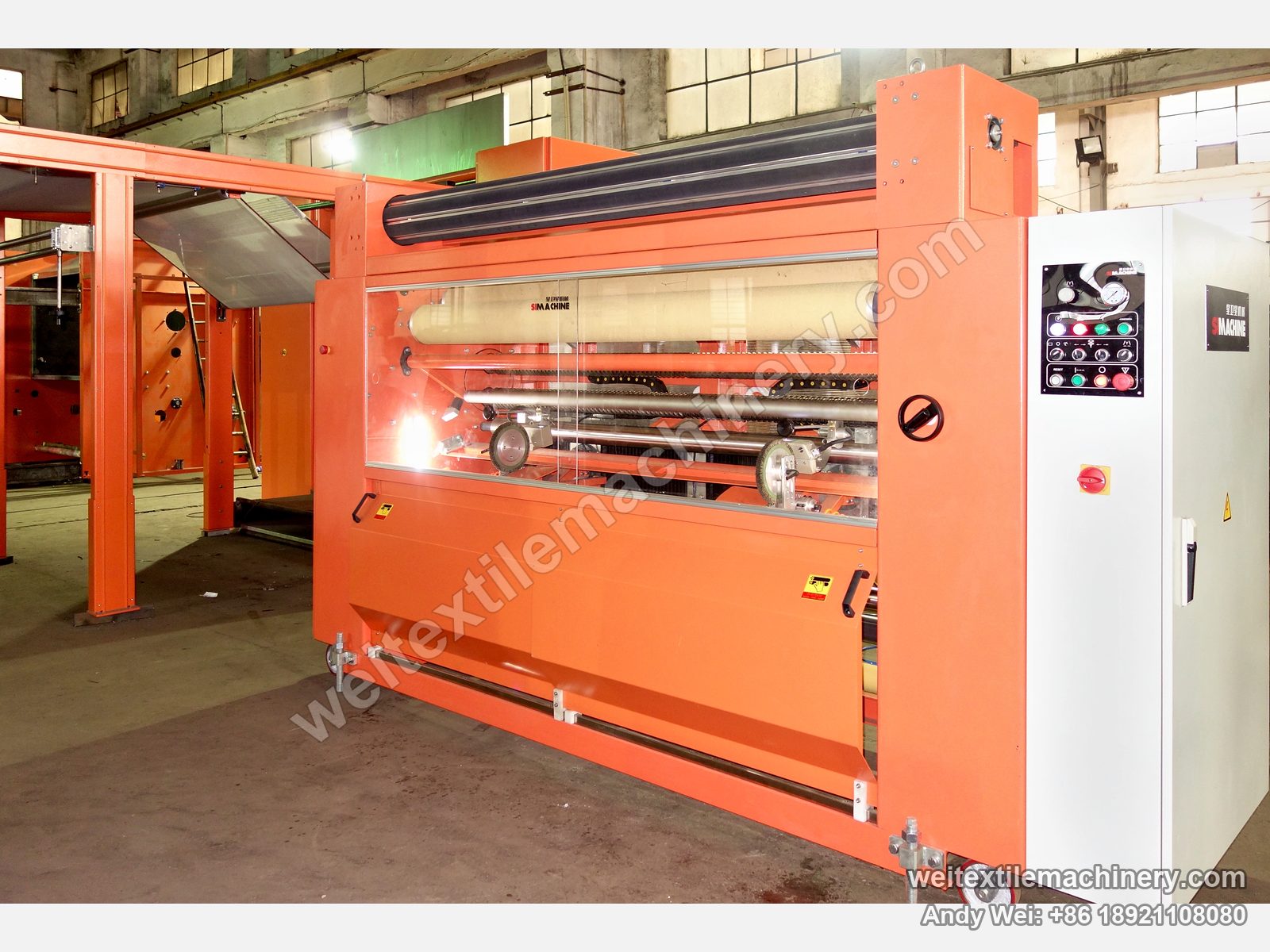

Full view, rollers visible through the window
Key advantages
- QL Pin-Wheel Transverse-Tension Straightening System — two pin wheels that turn freely hold the selvedges and open outwards symmetrically, pulling the weft straight across the width — skew, bow, S-shaped and W-shaped distortion all straightened
- Ø800 mm Large-Diameter Pin Wheels · Large Wrap Angle — the large wheel diameter provides the transverse stretching tension — the higher the tension, the better the skew correction
- Transverse Tension Setting — transverse tension is set at a pressure regulator and read directly from a gauge
- Automatic Selvedge Sensing · Automatic Wheel Traverse — the pinned width of the fabric is sensed and a separate motor traverses the pin wheels — the fabric runs centred
Fabric results (before / after)
Threading diagrams
QL Pin-Wheel Transverse-Tension Straightening System
- Selvedge Holding — both selvedges are held on the pin plates of the Ø800 mm wheels, which turn freely without resistance
- Symmetrical Opening — the two wheels spread apart symmetrically of their own accord when the machine starts; the gap between them is greatest at the foot of the wheels, and that is where the weft is pulled straight across the width
- Closing at Stop · Automatic Braking — the wheels come back together of their own accord when the machine stops, and are braked automatically when it stops from high speed
- Opening Varies with the Fabric — transverse tension is held at its set value while the wheel opening varies automatically with the elasticity of the fabric
- Overload Protection — should a sudden change in fabric width push the transverse pull too high, a spring-loaded relief automatically takes off the surplus, sparing the mechanism
Product overview
The WPF-ZW holds both selvedges on two large-diameter pin wheels that turn freely and open outwards symmetrically. Weft that is skewed, bowed, or distorted into an S or W shape straightens of its own accord under transverse tension and lies square to the warp once more.
The QL Pin-Wheel Transverse-Tension Straightening System uses Ø800 mm large-diameter pin wheels to provide the transverse stretching tension. Heavy qualities, and qualities whose weft is hard to read optically, are straightened just the same.
Fabric can be straightened dry or wet. The machine is installed at the infeed of drying, decatizing, pin-chain steaming-shrinking and similar machines, so the straightened weft is set straight away — preventing leg twist after the garment is washed.
Applications
Key specifications
| Working width | 1,800 mm |
|---|---|
| Maximum speed | 80 m/min |
| Pin-wheel diameter | 800 mm |
| Compressed-air supply pressure | 6 bar |
| Overall dimensions (L × W × H) | 3,518 × 1,000 × 2,100 mm |
Optional features
- Pin Plates — plates with different pin types, selected to suit the fabric
Full configuration notes, the complete feature list and selection advice — put together for your line and sent straight to you.
Request the full technical fileAll technical parameters stated in this document are measured under ideal operating conditions; actual performance may vary with fabric characteristics, process settings and on-site conditions. The manufacturer reserves the right to introduce technical improvements without prior notice.
